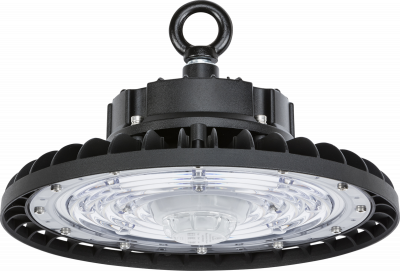

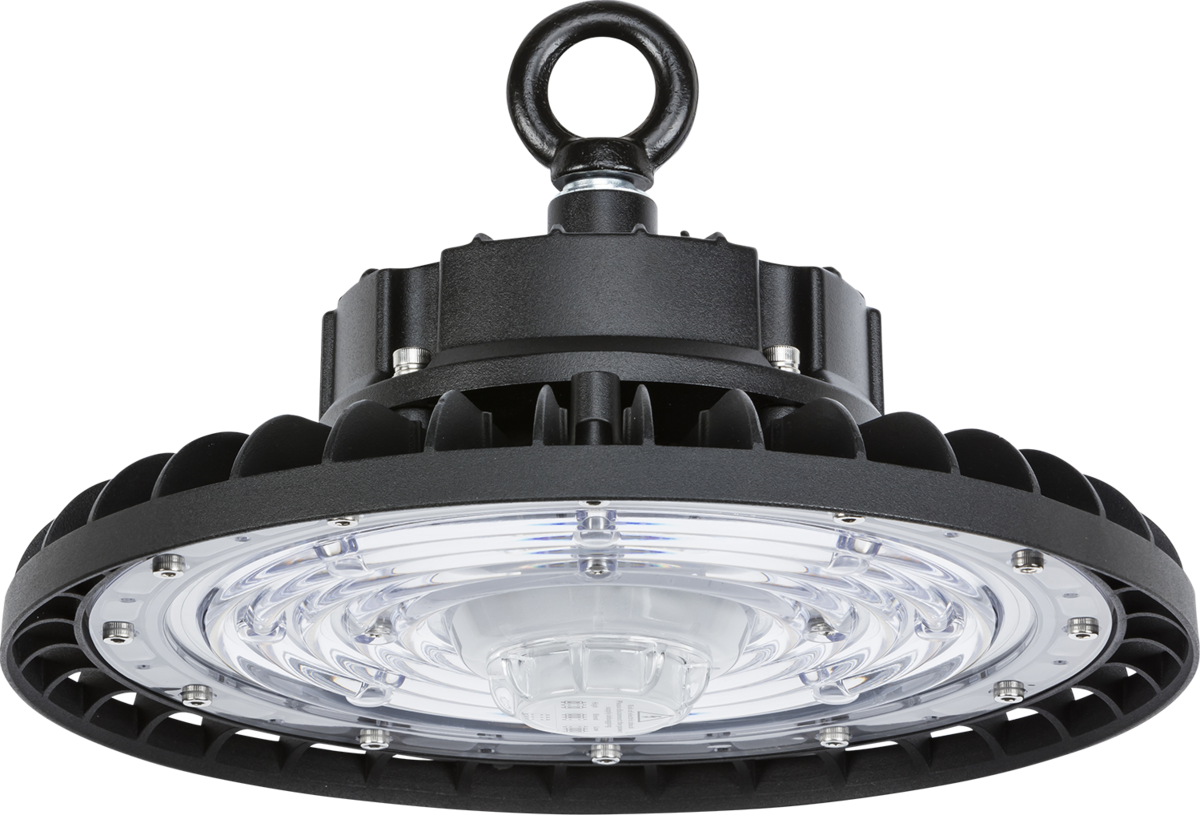

The innovative Axel multi-CCT forms part of the ever-expanding Knightsbridge industrial lighting portfolio. Available in 100W, 150W, and 200W, offering a unique user selectable 3000K/4000K/5000K CCT output.
Comes with a 5-year warranty and boasting Knightsbridge advanced sensor and DALI control modules and Lifud driver technology, coupled with cutting-edge Lumileds LEDs as standard. Axel features some of the latest in lighting and control technology, ensuring simple installation, ease of use, and energy efficient operation with 4 simple modes of operation:
- Stand-alone - switching on/off (e.g., from a wall switch)
- 0-10V control - built-in as standard, dimming via a 0-10V control signal
- Microwave sensor - motion detection via means of the modular sensor twist and lock accessory
- DALI addressable - centralised control over large areas of lighting via the modular DALI twist and lock accessory
Axel also comes as standard with a 120° light distribution with a 60° accessory lens readily available, making the product suitable for varying mounting heights. Where required, a unique aluminium reflector can be used to create a 70° output. This means that for projects where ceiling heights change, or perhaps the distance between shelving units differ, Axel can ensure uniform and consistent lighting.
- 100W, 150W, 200W versions
- 3000K/4000K/5000K selectable CCT
- Lumileds SMD LEDs
- Lifud driver
- Highly efficient at 145lm/W (200W variant)
- IK08 as standard and IK10 achieved when used with lens accessory
- Simple twist and lock microwave sensor and DALI addressable modules
- Multi-application product approach reduces stocking requirements, driving down the products carbon footprint
- Surface mount option
available as accessory, sold separately
Wattage | 100-200w |
Dimmable | 1-10V Dimmable |
Commercial Fitting Type | High/Low Bays |
IP Rating | IP65 |
Lumens | 13220 |
CRI | >85 |
Finish | Black |
Construction | Die-cast aluminium |
Primary Voltage | 230V 50Hz |
Lamp Technology | LED |
Class | I |
Diffuser | Prismatic |
Lamp Included | Yes |
Cable Length | 0.3 |
Energy Rating (Class) post 2021 SLR | D |
Beam Angle | 120 |
Lumens (Light Source only) | 13220 |
Efficacy | 138.9 |
Diameter | 265 |
