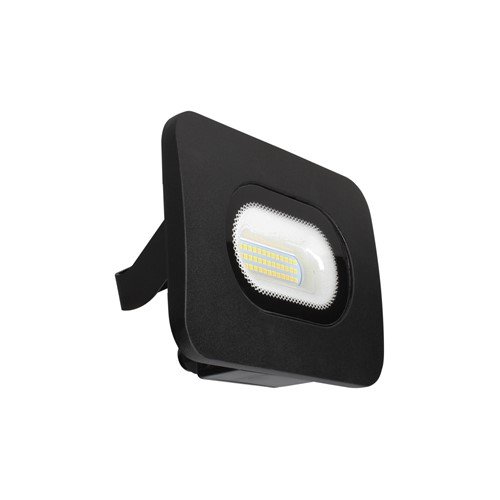

The LED Slim Curved Floodlights is another quality addition to the Meridian LED Lighting range. Available in four power levels - 10W, 20W, 30W and 50W with a 6500k colour rendition. Both versions deliver from 800 lumens for the 10W up to 4000 lumens for the top of the range 50W size. Fitted with SMD type LEDs, these new Meridian LED Floodlights have an average 30,000 hour operating life. Operationally there are two separate ranges, one IP65 Switch Start version and one an IP54 Manual Override PIR option.
PRODUCT FEATURES
Durable, slim and curved design with in-built integrated junction box and fitted with a PIR with manual override function
Angled bracket for easy installation and flexible positioning
Complete with 3x1.0mm2 cable and energy-saving LED luminaire
Black powder coated die-cast aluminium body with heat dissipater and clear tempered glass
TECHNICAL SPECIFICATION
General Information
Cut-Hole ; (mm) N/A
Dimensions (mm) 205x175x55mm
Ingress Protection IP54 (Floodlight without PIR IP65)
Product Colour/Finish Black
Electrical
Approvals CE-LVD, CE-EMC and RoSH
Class I
Dimmable (Y/N) None dimmable
Frequency (Hz) 50/60Hz
Input Voltage (V) 220-240V
Inrush Current (mA) 135mA
Wattage (W) 30W
Performance Data
Beam Angle (°) 110°
Colour Temperature (K) 6500K
CRI: Ra >70
LED Type SMD2835 0.5W
Lumens (Per Watt) 80lm/w
Number of LED (pcs) 42pcs
Power Factor >0.90
Useful Lumen Output 2400lm
Sensor
Sensor Interval (mins) 7sec~10mins
Sensor Range (Mtrs / °) Max. 10m
Construction
Body Material Diecast Aluminium body
Diffuser Material Clear tempered glass
Warranty Period (Years) 2yrs
Weight 475g
Other
Applications Architecture, parks and gardens, facades, roof top and billboard
Brand | Meridian |
Wattage | 21-30w |
Colour Temp | 6500K |
Commercial Fitting Type | Floodlights |
IP Rating | IP65 |
Finish | Black |
